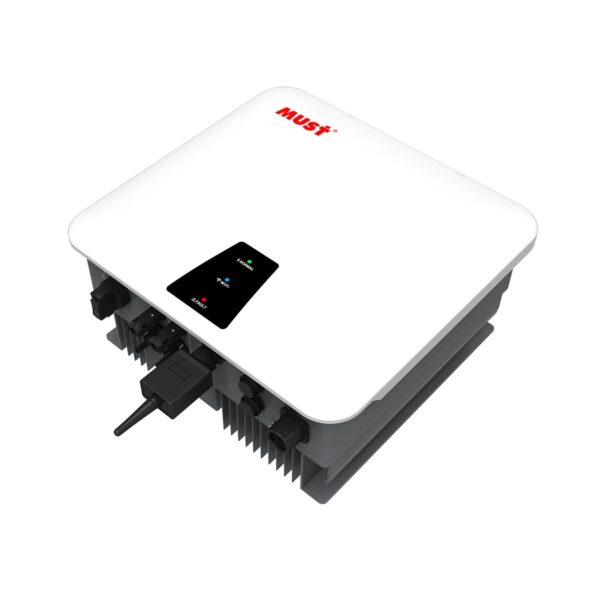

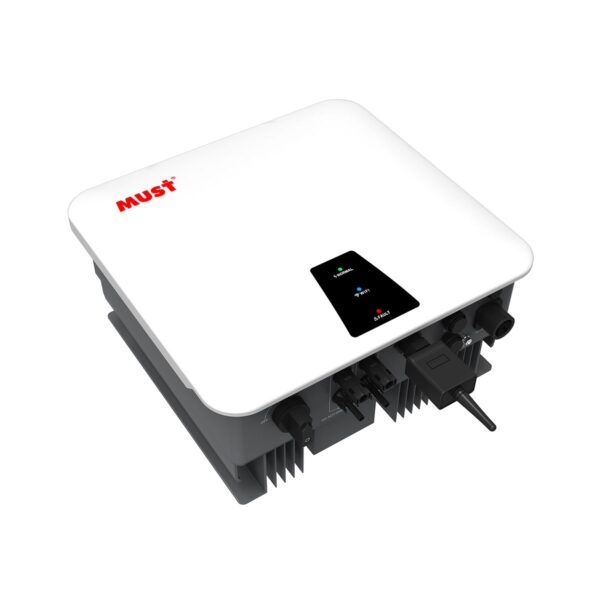

PH5900 TM Series (4-6KW)

Features: ■ Wide MPPT voltage range from 200V-1000V ■ IP66 protection degree ■ Integrated DC switch ■ DSP controller ■ The maximum efficiency is 98.4% ■ Multi MPPT controller ■ WIFI monitoring standard ■ Easy installation MODEL PH59-4000 TM PH59-5000 TM PH59-6000 TM PH59-7000 TM PH59-8000 TM PH59-9000 TM PH59-10000 TM PH59-11000 TM PH59-12000 TM PH59-13000 TM PH59-15000 TM Rated AC output power 4000W 5000W 6000W 7000W 8000W 9000W 10000W 11000W 12000W 13000W 15000W OUTPUT (AC) Max.AC apparent power 4400VA 5500VA 6600VA 7700VA 8800VA 9900VA 11000VA 12100VA 13200VA 14300VA 16500VA Max.output current 6.4A 8A 9.6A 11.1A 12.7A 14.3A 15.9A 17.5A 19A 20.6A 23.8A Nominal AC Voltage 230V / 400V AC Voltage range 320-478V AC grid frequency range 50/60Hz ±5Hz Power factor at Rated power 1 Adjustable displacement power factor 0.8leading. 0.8lagging Total harmonic distortion (THDi) < 3% AC grid connection type 3W N PE INPUT DATA Max.recommended PV power 4800W 6000W 7200W 8400W 9600W 10800W 12000W 13200W 14400W 15600W 18000W Max.DC voltage 1000V Start voltage 160V Nominal voltage 600V MPPT voltage range 200V-1000V Max.input current 12.5A/ 12.5A 12.5A/ 12.5A 12.5A/ 12.5A 12.5A/ 12.5A 12.5A/ 12.5A 12.5A/ 12.5A 12.5A/ 12.5A 12.5A/ 12.5A 21A/ 11A 21A/ 11A 21A/ 11A Number of independent MPP trackers / strings per MPP tracker 2/1 2/1 2/1 2/1 2/1 2/1 2/1 2/1 2/2 1 2/2 1 2/2 1 DC connection H4 / MC4 EFFICIENCY Max.efficiency 98.4% Euro weighted efficiency 97.6% 97.6% 97.6% 98% 98% 98% 98% 98% 98% 98% 98% MPPT efficiency 99.5% Protection devices Island protection, DC reverse polarity protection , Output over current protection, Output overvoltage protection-varistor, Integrated DC switch, Ground fault monitoring, Integrated all-pole sensitive leakage current monitoring unit GENERAL DATA FEATURES Machine Dimension (W*H*D)(mm) 540*426*219 Package Dimension (W*H*D)(mm) 644*330*520 N.W(kg) 21 23.2 24.8 G.W(kg) 23.2 25.4 27 Operation temperature range -25°C- 60°C with derating above 45°C Noise emission(typical) ≤35dB(A) Altitude 3000m Self-consumption (night) < 1W Topology Transformerless Cooling concept Natural Environmental protection Rating IP66 Relative humidity 0~100% FEATURES AC connection Connector Display LED Communication interfaces USB/WIFI/RS485/GPRS(opt) Warranty Standard 5 years / 10 years (opt.) CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3:2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011) IEC60529; EN50549-1:2019; UNE217001-2020; UNE217002-2020, NTS-631:2021 (Type A); G99
