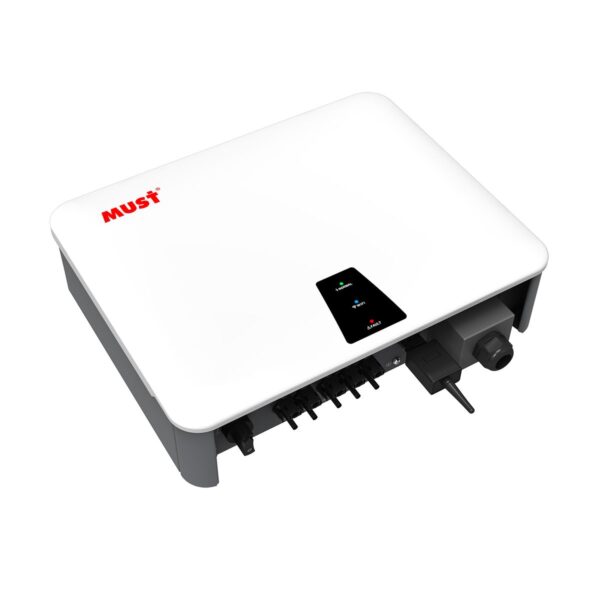

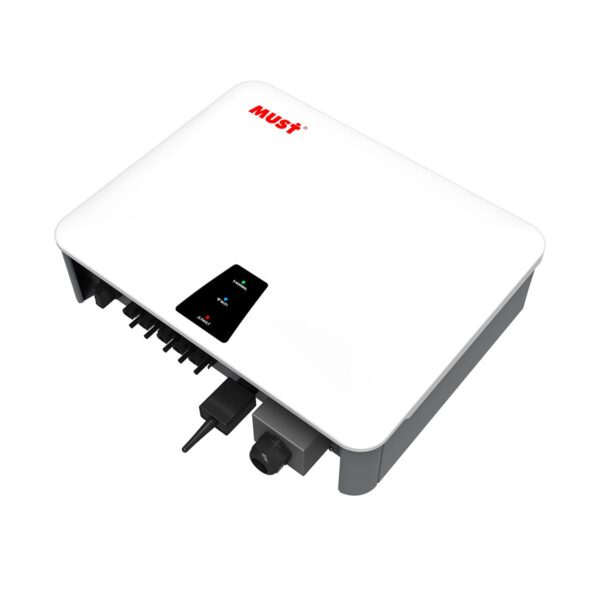

PH5900 TM Series (17-25KW)

■ Wide MPPT voltage range from 200V-1000V ■ IP66 protection degree ■ Integrated DC switch ■ DSP controller ■ The maximum efficiency is 98.6% ■ Multi MPPT controller ■ WIFI monitoring standard ■ Easy installation MODEL PH59-17000 TM PH59-18000 TM PH59-19000 TM PH59-20000 TM PH59-21000 TM PH59-22000 TM PH59-23000 TM PH59-24000 TM PH59-25000 TM Rated AC output power 17000W 18000W 19000W 20000W 21000W 22000W 23000W 24000W 25000W OUTPUT (AC) Max.AC apparent power 18700VA 19800VA 20900VA 22000VA 23100VA 24200VA 25300VA 26400VA 27500VA Max.output current 27.1A 28.6 30.2 31.8A 33.5A 35A 36.6A 38A 39A Nominal AC Voltage 230V/400V AC Voltage range 320-478V AC grid frequency range 50/60±5Hz Power factor at Rated power 1 Adjustable displacement power factor 0.8leading. 0.8lagging Total harmonic distortion (THDi) < 3% AC grid connection type 3W N PE INPUT DATA Max.recommended PV power 20400W 21600W 22800W 24000W 25200W 26400W 27600W 28800W 30000W Max.DC voltage 1100V Start voltage 250V Nominal voltage 600V MPPT voltage range 200V-1000V Max.input current 26A/26A 26A/26A 26A/26A 26A/26A 26A/39A 26A/39A 26A/39A 26A/39A 26A/39A Number of independent MPP trackers / strings per MPP tracker 2/2 2/2 2/2 2/2 2/2 3 2/2 3 2/2 3 2/2 3 2/2 3 DC connection H4 / MC4 EFFICIENCY Max.efficiency 98.3% 98.6% Euro weighted efficiency 98% 98% 98% 98% 98.3% 98.3% 98.3% 98.3% 98.3% MPPT efficiency 99.5% Protection devices Island protection, DC reverse polarity protection , Output over current protection, Output overvoltage protection-varistor, Integrated DC switch, Ground fault monitoring, Integrated all-pole sensitive leakage current monitoring unit, DC Surge protection, AC Surge protection GENERAL DATA FEATURES Machine Dimension (W*H*D)(mm) 540*426*234 Package Dimension (W*H*D)(mm) 650*338*542 N.W(kg) 28.6 G.W(kg) 32.5 Operation temperature range -25°C- 60°C with derating above 45°C Noise emission(typical) ≤40dB(A) Altitude 3000m Self-consumption (night) < 1W Topology Transformerless Cooling concept Fan cooling Environmental protection Rating IP66 Relative humidity 0~100% FEATURES AC connection Connector Display LED Communication interfaces WIFI/RS485/GPRS(opt) Warranty Standard 5 years / 10 years (opt.) CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3:2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011) IEC60529; EN50549-1:2019; UNE217001-2020; UNE217002-2020, NTS-631:2021 (Type A); G99
