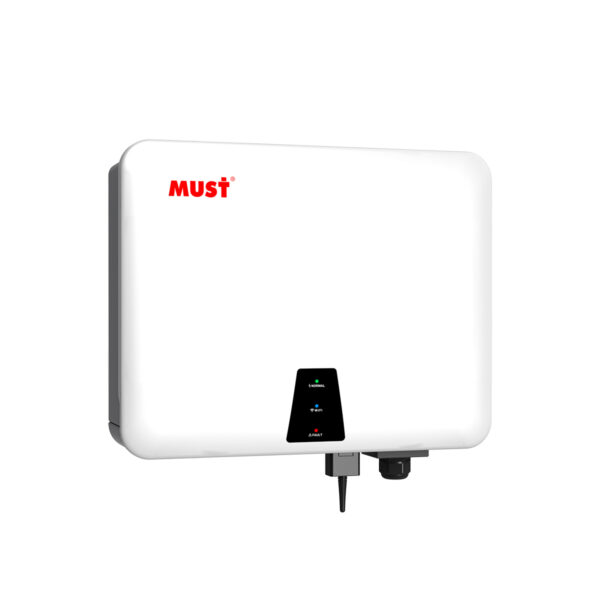

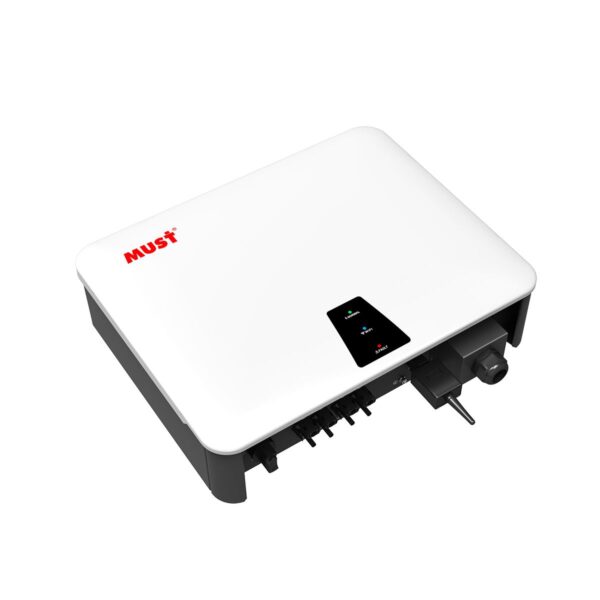

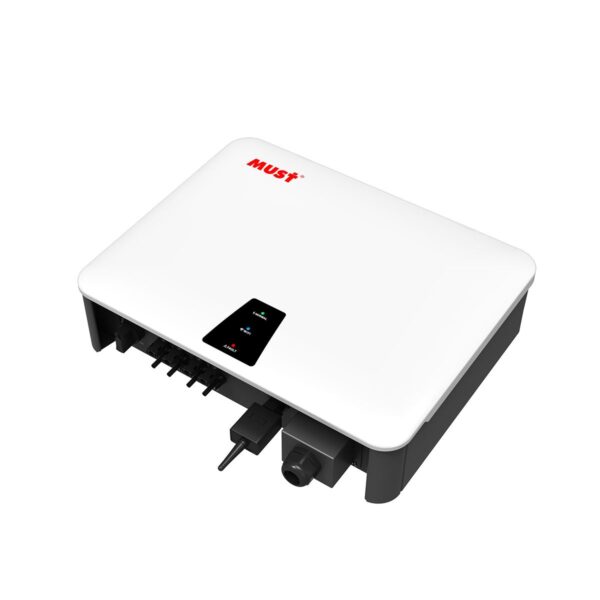

PH5900 TML Series (10-12kW)

■ Wide MPPT voltage range from 200V-800V ■ IP66 protection degree ■ Integrated DC switch ■ DSP controller ■ The maximum efficiency is 98.6% ■ Multi MPPT controller ■ WIFI monitoring standard ■ Easy installation MODEL PH59-10000 TML PH59-11000 TML PH59-12000 TML Rated AC output power 10000W 11000W 12000W OUTPUT (AC) Max.AC apparent power 11000W 12100W 13200W Max.output current 27.5A 30.3A 33A Nominal AC Voltage(L-N/L-L) 133V/230V AC grid frequency range 50/60Hz±5Hz Power factor at Rated power >0.99 Adjustable displacement power factor 0.8leading. 0.8lagging Total harmonic distortion (THDi) < 3% AC grid connection type 3W N PE INPUT DATA Max.recommended PV power 13000W 14300W 15600W Max.DC voltage 800V Start voltage 250V Nominal voltage 360V MPPT voltage range 200V-800V Max. short-circuit current 32.5A/32.5A Max.input current 26A/26A Number of independent MPP trackers / strings per MPP tracker 2/2 2/2 2/2 DC connection H4 / MC4 EFFICIENCY Max.efficiency 98.6% Euro weighted efficiency 98.3% MPPT efficiency 99.5% Protection devices Island protection, DC reverse polarity protection , Output over current protection, Output overvoltage protection-varistor, Integrated DC switch, Ground fault monitoring, Integrated all-pole sensitive leakage current monitoring unit, DC Surge protection, AC Surge protection GENERAL DATA FEATURES Machine Dimension (W*H*D)(mm) 540*426*234 Package Dimension (W*H*D)(mm) 650*338*542 N.W(kg) 28.6 G.W(kg) 32.5 Operation temperature range -25°C- 60°C with derating above 45°C Noise emission(typical) ≤40dB(A) Altitude 3000m Self-consumption (night) < 1W Topology Transformerless Cooling Smart air cooling Environmental protection Rating IP66 Relative humidity 0~100% FEATURES AC connection Cable gland OT terminal Display LED Communication interfaces WIFI/RS485/GPRS(opt) Warranty Standard 5 years / 10 years (opt.) CERTIFICATION & STANDARDS UL1741
