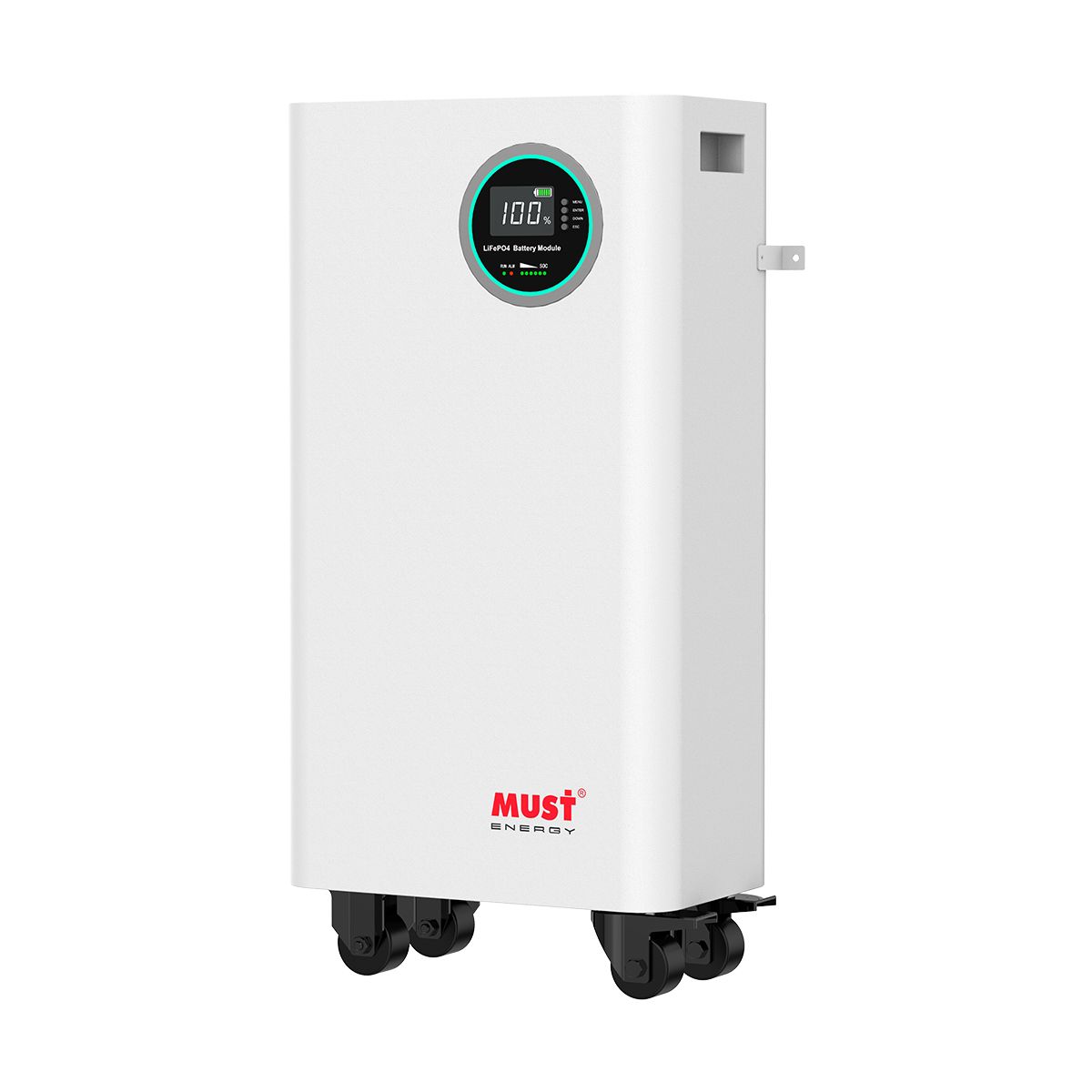

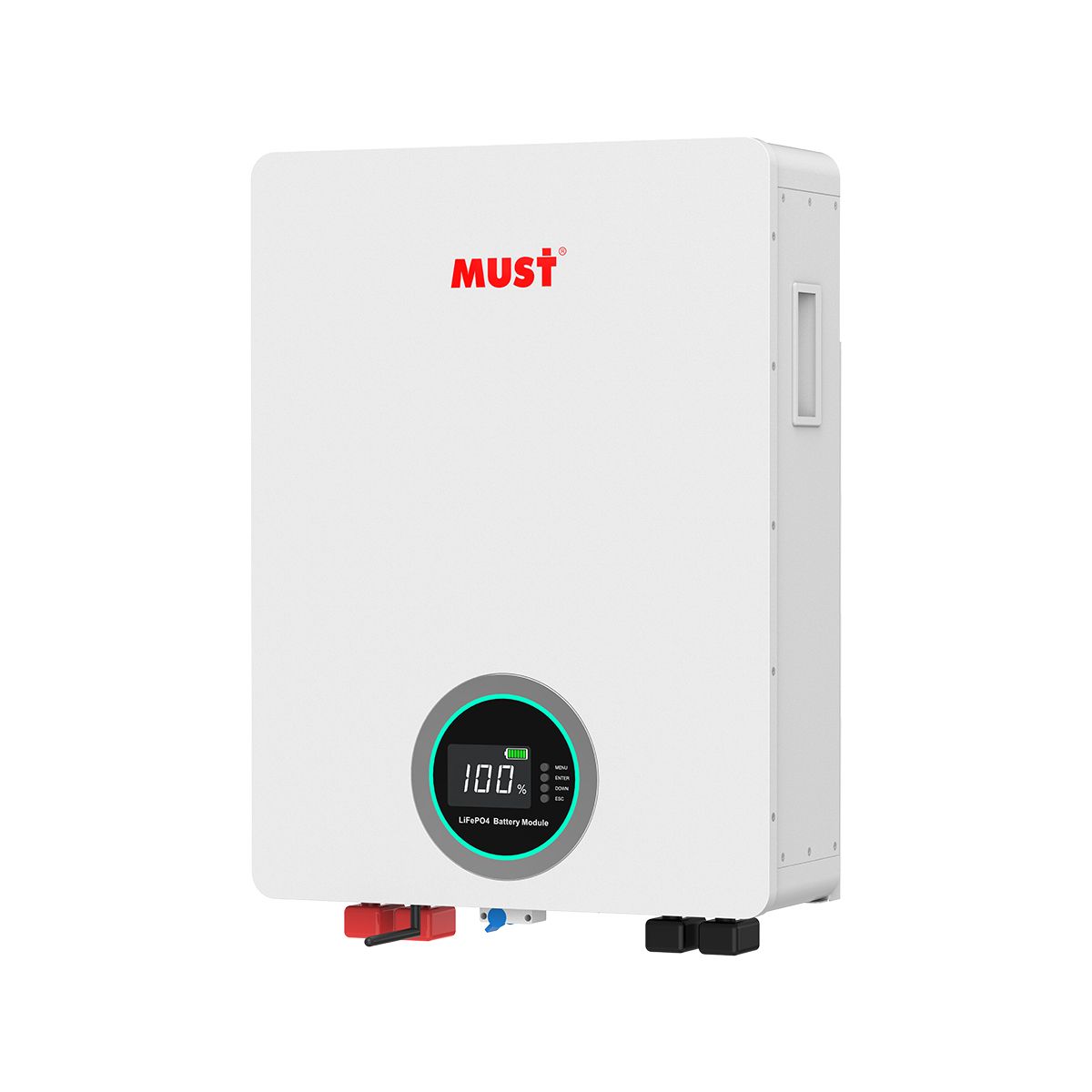

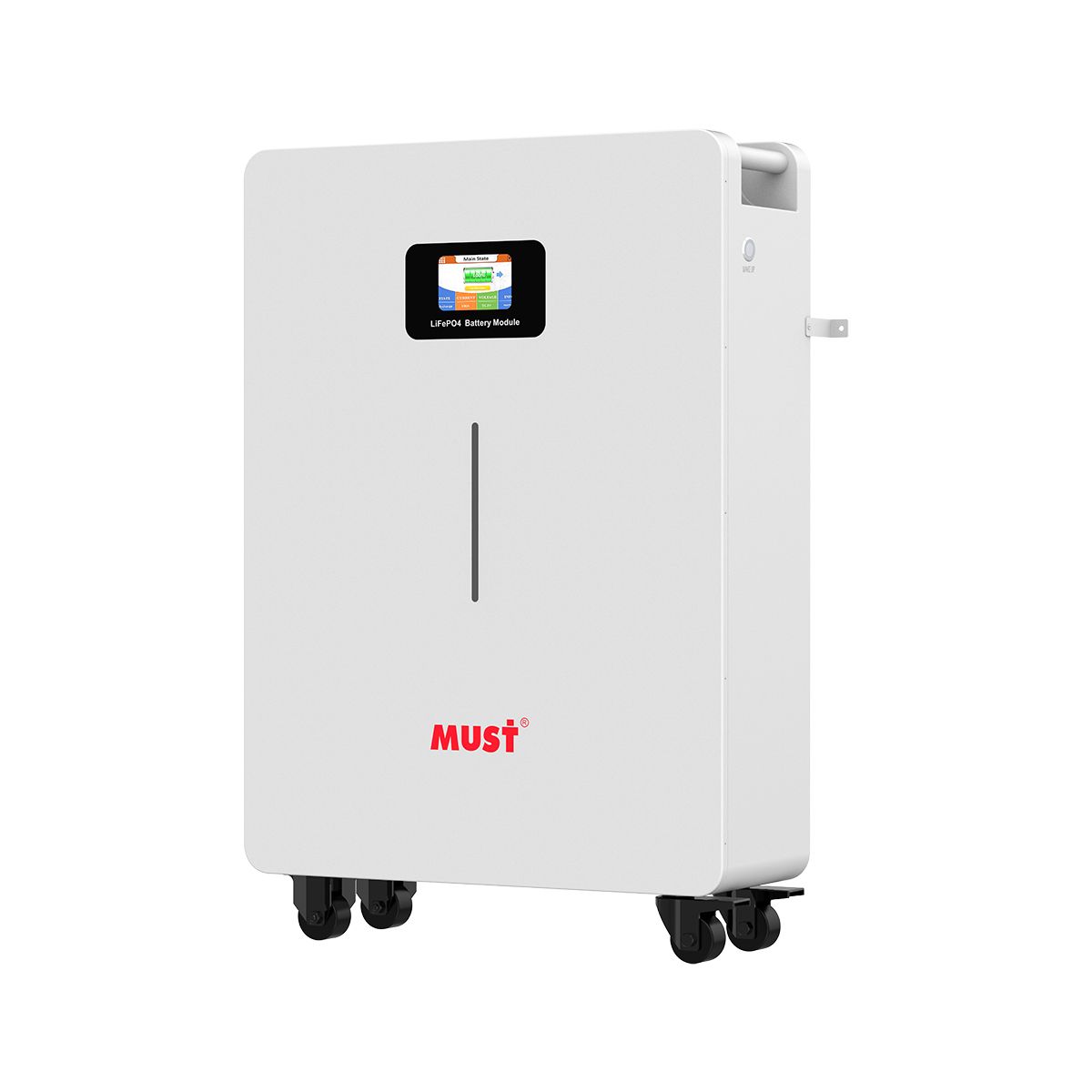

Description Key Features Ultimate Installation Flexibility: One battery, multiple mounting styles. Supports standard 19-inch Rack Mounting, space-saving Wall Mounting, modular Stacking, or Vertical Standing (with optional wheels on larger models) to fit any garage or utility room. Massive Energy Density: Offers a wide range of capacities from 100Ah (2.5kWh) up to an industry-leading 600Ah (30.72kWh) in a single cabinet, reducing the number of units needed for large systems. Industrial-Grade Scalability: Advanced BMS allows for the parallel connection of up to 15 units, enabling system expansion up to hundreds of kWh for commercial applications. Smart Connectivity: Built-in WiFi and Bluetooth modules allow users to monitor battery health, SOC, and cycles in real-time via a smartphone app. Universal Inverter Compatibility: Equipped with CAN2.0, RS485, and RS232 ports, ensuring seamless communication and closed-loop control with most major hybrid inverter brands (e.g., Victron, Growatt, Deye, MUST). High-Discharge Power: The 48V models support continuous discharge currents of 100A to 200A, capable of driving high-power inverters (5KW-10KW) without throttling. Long Lifespan: Rated for ≥6000 cycles at 80% DOD, providing over 10-15 years of daily service. Applications Home Energy Storage: Stackable design fits neatly in corners, storing solar power for night use. Commercial Backup: Parallel capability supports large loads in offices or server rooms. Off-Grid Systems: High capacity 48V models (300Ah/400Ah/600Ah) reduce wiring complexity for large off-grid arrays. Core Specifications Table (Models grouped by Voltage. Values separated by “/” indicate capacity options.) Model LP16-24100 LP16-24200 / 24300 LP16-48100 / 48200 LP16-48300 / 48320 LP16-48410 / 48600 Nominal Voltage 25.6V 25.6V 51.2V 51.2V 51.2V Capacity 100Ah 200Ah / 300Ah 100Ah / 200Ah 300Ah / 320Ah 410Ah / 600Ah Energy 2.56kWh 5.12kWh / 7.68kWh 5.12kWh / 10.24kWh 15.36kWh / 16.38kWh 20.99kWh / 30.72kWh Max Cont. Discharge 100A 150A / 200A 100A / 150A 200A 200A Max Output Power 2.5KW 3.5KW / 5KW 5KW / 7.5KW 10KW 10KW Dimensions (mm) 442*486*177 442*487*250 / 442*495*230 442*626*177 / 442*687*250 490*923*265 600*1093*264 / 744*1093*264 Net Weight (kg) 27 45 / 58 45 / 81 117 / N/A 170 / 208 Communication CAN/RS485 CAN/RS485 CAN/RS485 CAN/RS485 CAN/RS485 Protection Level IP21 IP21 IP21 IP21 IP21 (Note: Dimensions vary significantly across models. The 300Ah models are floor-standing/vertical types due to size/weight.)
