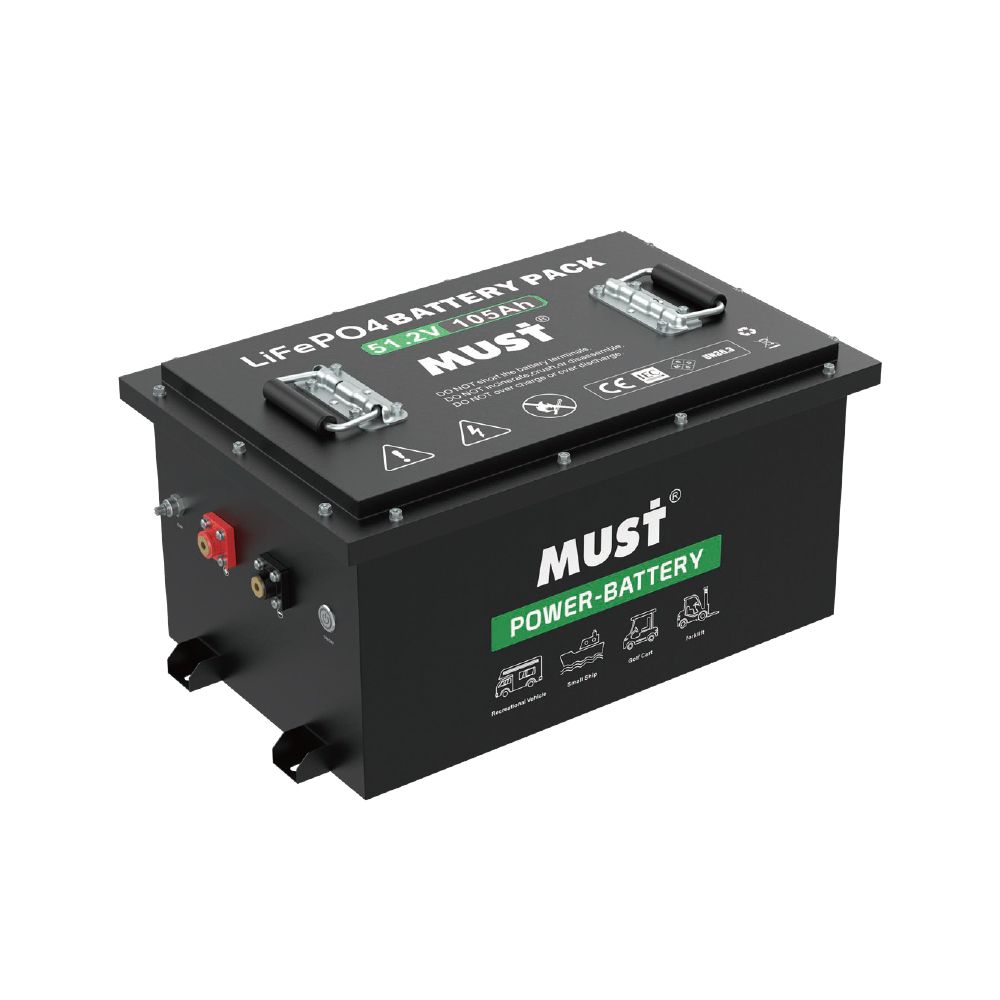

Description Key Features IP67 Waterproof Rating: The fully sealed SECC/SPCC metal enclosure provides complete protection against dust ingress and water submersion (up to 1m for 30 min), making it perfect for marine and outdoor vehicle use. High-Power Motive Performance: Designed for traction motors, offering a Maximum Discharge Current of up to 200A (model dependent). This translates to 10KW of instantaneous power, preventing voltage sag during acceleration or heavy lifting. Drop-In Lead-Acid Replacement: The 51.2V nominal voltage aligns perfectly with 48V vehicle systems. Its compact size and optional M8 / Anderson terminals make retrofitting easy. Long Cycle Life (≥6000): Uses premium LiFePO4 cells with a 12-Year Design Life, delivering over 6000 cycles at 80% DOD—lasting 5-10 times longer than traditional lead-acid golf cart batteries. Smart BMS with Bluetooth (Optional): Integrated intelligent BMS monitors cell voltage, temperature, and current. Optional Bluetooth connectivity allows users to check battery SOC and health via a smartphone app. Fast Charging Capable: Supports high-current charging (up to 100A), significantly reducing downtime compared to lead-acid batteries that require long overnight charges. Wide Temperature Range: Operates reliably from -20°C to 55°C, ensuring performance in both freezing winters and hot summers. Applications Golf Carts: Lighter weight increases range and speed; zero maintenance. Electric Boats/Marine: IP67 rating protects against bilge water and spray. AGVs & Forklifts: High discharge capability supports heavy industrial loads. RVs & Utility Vehicles: Robust power source for off-road adventures. Core Specifications Table (All models are 51.2V Nominal Voltage.) Model LP22-4850 LP22-48100 LP22-48105 LP22-48150 LP22-48200 Nominal Capacity 50Ah 100Ah 105Ah 150Ah 200Ah Nominal Energy 2.56kWh 5.12kWh 5.37kWh 7.68kWh 10.24kWh Max Discharge Current 50A 100A 100A / 150A 100A / 200A 200A Max Output Power 2.5KW 5.0KW 5KW / 7.5KW 5KW / 10KW 10KW Max Charge Current 20A 100A 100A 100A 100A Dimensions (mm) 320*345*252 528*267*336 528*267*336 (Check Spec) (Check Spec) Net Weight N/A 50 kg 51 kg N/A N/A Terminals M8 / Anderson M8 / Anderson M8 / Anderson M8 / Anderson M8 / Anderson Protection Level IP67 IP67 IP67 IP67 IP67 (Note: Dimensions and weights for the 150Ah and 200Ah models are not fully listed in the snippet, but they share the same IP67 ruggedized design philosophy.)
