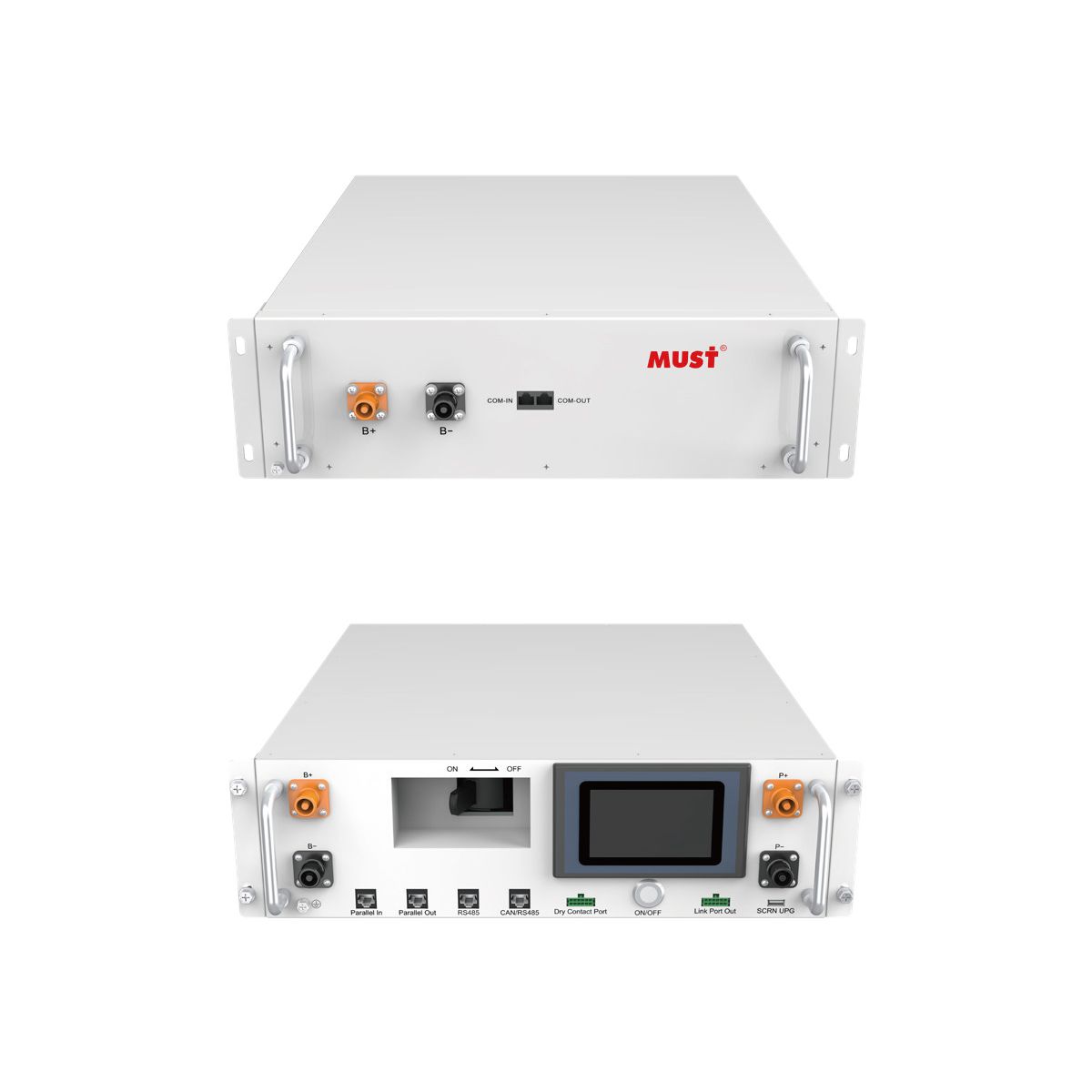

Description Key Features Modular High-Voltage Architecture: The system strings together modular HP2900 (5.12kWh/100Ah) batteries to increase voltage rather than just parallel capacity. Scale from 4 modules (204.8V / 20.4kWh) up to 17 modules (870.4V / 87.1kWh) in a single cabinet. Massive System Expansion: Designed for the future. If a single 87kWh cluster isn’t enough, you can expand the system up to 348.1kWh, making it perfectly suited for Commercial & Industrial (C&I) peak shaving and grid independence. Ultra-High Power Output: The high-voltage design allows for massive power delivery. A single 87.1kWh cluster supports up to 85KW of maximum continuous output (with a 100A charge/discharge current), effortlessly driving 3-phase industrial loads. Premium Long-Life Cells: Built with highly stable LiFePO4 chemistry, providing ≥6000 deep cycles (at 80% DOD, 25°C). The system delivers a 95% roundtrip efficiency and is supported by a comprehensive 10-Year Warranty. Smart HV-BOX Control: Every system is managed by the central HV-BOX, featuring a built-in 125A circuit breaker, an LCD status indicator, and CAN2.0/RS485 communication ports for seamless closed-loop integration with high-voltage inverters. Plug-and-Play Cabinet Installation: The batteries and HV-BOX slide neatly into a dedicated Indoor Rack Cabinet (IP20), significantly reducing on-site wiring complexity and saving valuable installation time. Applications Commercial & Industrial (C&I): Ideal for factories, farms, and offices looking to reduce demand charges through peak shaving and load shifting. Luxury Estates: Provides robust 3-phase whole-home backup for large properties with heavy HVAC or multi-EV charger loads. Microgrids & Solar Farms: Pairs perfectly with high-voltage Power Conversion Systems (PCS) to store and dispatch massive amounts of solar energy. Core Specifications Table (Models are configured by connecting HP2900 5.12kWh/100Ah modules in series. All systems support 100A Max Continuous Current and 120A Peak for 30s.) Configuration HV29-20.4 HV29-30.7 HV29-40.9 HV29-51.2 HV29-61.4 HV29-76.8 HV29-87.1 Number of Modules 4 Modules 6 Modules 8 Modules 10 Modules 12 Modules 15 Modules 17 Modules Nominal Voltage 204.8V 307.2V 409.6V 512.0V 614.4V 768.0V 870.4V Nominal Energy 20.48 kWh 30.72 kWh 40.96 kWh 51.20 kWh 61.44 kWh 76.80 kWh 87.04 kWh Max Output Power 20 KW 30 KW 40 KW 50 KW 60 KW 75 KW 85 KW Operating Voltage 172.8~230.4V 259.2~345.6V 345.6~460.8V 432.0~576.0V 518.4~691.2V 648.0~864.0V 734.4~979.2V Cabinet Dimensions (W*H*D) mm 550*1040*700 550*1390*700 550*1850*800 1150*1220*700 1150*1390*700 1150*1570*800 1150*1850*700 System Weight (kg) 206 311 405 506 610 755 870 Protection Rating IP20 (Indoor) IP20 (Indoor) IP20 (Indoor) IP20 (Indoor) IP20 (Indoor) IP20 (Indoor) IP20 (Indoor)
