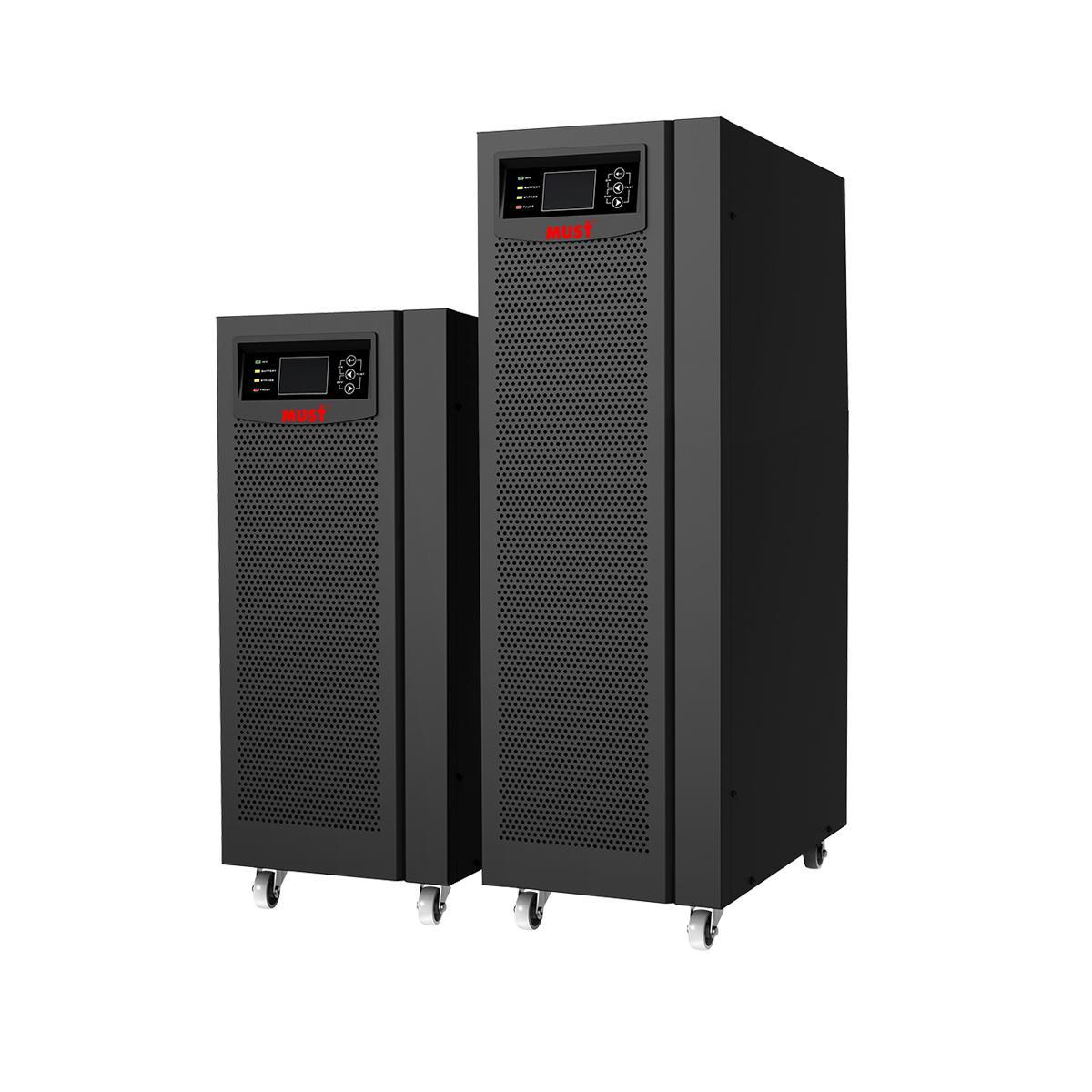

Description Performance: • With double conversion online design, zero output transfer time. • Adopt DSP digital control, excellent performance indicators, more steady and reliable. • Adopt active power factor correction technology (PFC), the input power factor is 1, can reduced the pollution to the grid, to energy saving and reducing system investment cost. • Output voltage 100Vac/110Vac/115Vac/120Vac/208Vac/220Vac/230Vac/240Vac can be set. • Ultra-wide input voltage range , input voltages available 110V instead of turn to battery power. • With LCD LED real-time display, UPS operating available for Detection. • With self-detection function, can detect hidden faults of UPS. • Cold start by battery without grid Input. • Input frequency range 40~70Hz, support various fuel generators. • With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protectionand battery overcharge protection. • Output power factor 1.0 for your option. max efficiency reach 95%, reduce loss of UPS. • Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations, available SNMP card (optional) to UPS remote monitoring function. • The split type model can directly replace the entire built-in battery pack, avoiding safety accidents caused by battery replacement. Specification: MODEL EH55 TLV 6K EH55 TLV 6KS EH55 TLV 10K EH55 TLV 10KS Rated Capacity 6KVA/6KW 10KVA/10KW Input Input format L N PE Rated input voltage 220/230/240VAC Voltage range 110~300VAC Frequency range 50/60±6Hz (Default), ±10Hz (Settable) Input power factor ≥0.99 Input total harmonic distortion ≤4% inear load Output Output format L N PE Output voltage 100/110/115/120VAC; 208/220/230/240VAC Output accuracy ±1% Output frequency For on-line mode: follow current frequency, battery mode: 50 / 60Hz±0.1% Output harmonic distortion ≤ 2% linear load; ≤ 5% nonlinear load (PF=0.7) Overload capacity AC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 200ms@>150% Load Battery Mode: 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load Switching time Switch to battery mode 0ms Switch to bypass 4ms AC priority mode Support Efficiency AC Mode (Full Load) Peak efficiency 95.5%, Full load efficiency 94% Battery Mode (Full Load) Peak efficiency 94.5%, Full load efficiency 94.3% (20pcs Battery) Battery Battery type Lead Acid Battery Battery number 7Ah*16 16/18/20 (adjustable) 16 (default ) 7Ah*16 16/18/20 (adjustable) 16 (default ) Chaging current 1A (default) 1-12A adjustable (default 5A)) 1A (default) 1-12A adjustable (default 5A)) Charging mode Two-stage/three-stage charging Display LCD 2×8 PIN/Pitch 2.54mm, support 128-bit segment code, up to 4 buttons 4 LEDs, can display operating mode / load / input / output, etc. Interface RS-232 Support: Windows 2000/2003/XP/Vista/2008/7/Linux/Unix and MAC USB Windows Family & MAC EPO Support Intelligent slot (Optional) SNMP/AS400 Relay Card/RS485 Maintenance bypass switch (Optional) Support Environmental parameters Operating ambient temperature 0~40℃ Operating environment humidity 20%~95%(no condensation) Storage temperature -15~60℃ (batteries: 0~40℃ ) Altitude The elevation should not exceed 1000m, 1000m or above, up to 4000 m, reference IEC62040 Noise ≤50db Mechanical Specifications Dimensions (D*W*H) (mm) 500*250*610 500*250*850 500*250*610 500*250*850 Net weight (kg) 93 59 102 60.5
