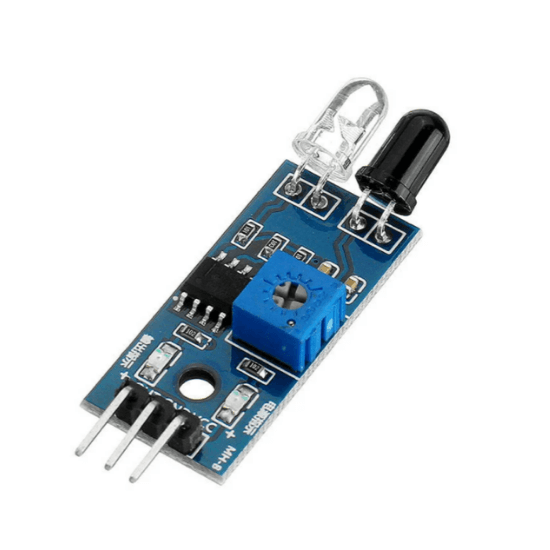

Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life. The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine-tune the range of operation, the effective distance range is 2cm to 80cm. The Infrared Obstacle Avoidance IR Sensor Module is a versatile component used in robotics and automation projects. It utilizes infrared technology to detect obstacles within its range, typically up to a few meters away. These modules consist of an infrared transmitter and receiver pair, which work together to emit infrared light and detect its reflection off nearby objects. When an obstacle is detected, the sensor sends a signal to the connected microcontroller, allowing the system to take appropriate action, such as stopping a robot or changing its direction. This module is commonly employed in applications requiring navigation and collision avoidance, making it a valuable tool for hobbyists and professionals alike in creating intelligent and responsive systems. Here are the uses of the Infrared Obstacle Avoidance IR Sensor Module listed in points: Robotics: Enables obstacle detection and avoidance for autonomous robot navigation. Home Automation: Used in automatic door opening/closing systems and smart lighting control based on occupancy detection. Industrial Automation: Enhances safety by detecting obstacles in the path of moving machinery and guiding automated vehicles within warehouses. Security Systems: Incorporates obstacle detection functionality into security systems for perimeter monitoring and intrusion detection. Proximity Sensing: Provides proximity sensing capabilities for various applications, such as activating hand dryers in restrooms or triggering automatic faucets. Interactive Installations: Utilized in interactive installations and exhibits for detecting user presence and triggering responsive actions. Educational Projects: Integrated into educational projects to teach principles of sensor technology and automation. Certainly, here are additional specifications for the Infrared Obstacle Avoidance IR Sensor Module: Operating Voltage: Typically operates within a range of 3.3V to 5V, making it compatible with most microcontroller and development boards. Detection Range: Can detect obstacles within a range of up to several meters, depending on the specific model and environmental conditions. Output Signal: Provides a digital output signal to indicate the presence or absence of obstacles, making it easy to interface with microcontrollers or other digital systems. Detection Angle: Offers a wide detection angle, typically ranging from 30 to 60 degrees, allowing for effective coverage of the surrounding area. Response Time: Exhibits rapid response times, usually in the range of milliseconds, ensuring quick detection and reaction to obstacles. Adjustable Sensitivity: Some models may feature adjustable sensitivity settings, allowing users to fine-tune the sensor’s response according to their specific requirements. Compact Size: Designed to be compact and lightweight, facilitating easy integration into various projects and applications. Low Power Consumption: Consumes minimal power during operation, making it suitable for battery-powered devices and applications requiring energy efficiency. Environmental Compatibility: Works reliably in various environmental conditions, including indoor and outdoor settings, and is unaffected by ambient light sources. Mounting Options: Typically comes with mounting holes or brackets for easy installation and positioning in different orientations. Features: Easy to assemble and use Onboard detection indication The effective distance range of 2cm to 80cm A preset knob to fine-tune distance range If there is an obstacle, the indicator lights on the circuit board. Package Includes : 1 x Infrared Obstacle Avoidance IR Sensor Module (Active Low) SKU: IK-185 Categories: All Products, IR Proximity/Motion Tags: IR, IR Receiver, IR Sensor, IR Transmitter, Obstacle Avoidance Loading...Barcode:
